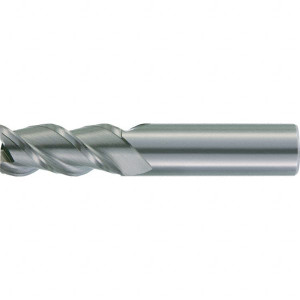

Kennametal 5/8" Diam 3 Flute Solid Carbide Corner Radius End Mill Uncoated, 4" OAL, 2-1/8" LOC, 5/8" Shank Diam, 37° Helix, RH Cut, RH Flute, Centercutting 3866273 - 46872537
Brand: Kennametal- SKU:
- 46872537
- ID:
- 616063
$168.23
Kennametal 5/8" Diam 3 Flute Solid Carbide Corner Radius End Mill Uncoated, 4" OAL, 2-1/8" LOC, 5/8" Shank Diam, 37° Helix, RH Cut, RH Flute, Centercutting
Manufacturer Part #: 3866273
S/N: 46872537
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 2-1/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0236 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| UNSPSC Code | 27112803 |
| Material Grade | Submicron |
| Series | AADE |
| Material Application | Non-Ferrous Metal |
| Coating Classification | Uncoated |
| Proprietary Coating Designation | Uncoated |
| For Use With. | ER Single Angle Standard Collets |
| Helix Style | High |
