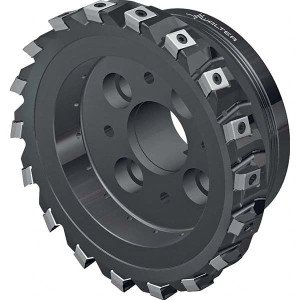

Walter Tools 152.4mm Cut Diam, 38.1mm Arbor Hole Diam, 3mm Max Depth, Indexable Square-Shoulder Face Mill Takes 13 Inserts, 90° Lead Angle, 62.99mm High, LN.U1306R Insert Style, Through Coolant, Series F5141 6592070 - 47090378
Brand: Walter Tools- SKU:
- 47090378
- ID:
- 680933
$2,356.06
Walter Tools 152.4mm Cut Diam, 38.1mm Arbor Hole Diam, 3mm Max Depth, Indexable Square-Shoulder Face Mill Takes 13 Inserts, 90° Lead Angle, 62.99mm High, LN.U1306R Insert Style, Through Coolant, Series F5141
Manufacturer Part #: 6592070
S/N: 47090378
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Cutting Diameter (mm) | 152.40 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | LN.U1306..R |
| Cutter Style | F5141 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp, Screw |
| Lead Angle | 90 |
| Series | F5141 |
| Overall Height (Mm - 5 Decimals) | 62.99 |
| Overall Height (Decimal Inch) | 2.4800 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | K, M, N, P, S |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Standards | ISO |
| Manufacturers Catalog Number | F5141.UB38.152.Z13.12 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 13 |
| Number Of Flutes | 13 |
