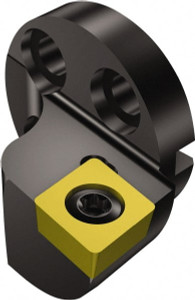

Sandvik Coromant Size 16 20mm Internal Right Hand Modular Turning & Profiling Cutting Unit Head 11mm Ctr to Cutting Edge, Uses CCMT 060204 Inserts, Through Coolant 5764330 - 47097654
Brand: Sandvik Coromant- SKU:
- 47097654
- ID:
- 687592
$550.47
Sandvik Coromant Size 16 20mm Internal Right Hand Modular Turning & Profiling Cutting Unit Head 11mm Ctr to Cutting Edge, Uses CCMT 060204 Inserts, Through Coolant
Manufacturer Part #: 5764330
S/N: 47097654
UNSPSC: 23242100
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| System Size | 16 |
| Cutting Direction | Right Hand |
| Compatible Insert Style | CCMT 060204 |
| Internal or External | Internal |
| Insert Holding Method | Clamp, Screw |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Series | CoroTurn 107 |
| Neck Diameter (mm) | 25.00 |
| Neck Diameter (Decimal Inch) | 0.6299 |
| Axial Rake Angle | 0.00 |
| Radial Rake Angle (Degrees) | -12 |
| Head Connection Size | 32 |
| Complete Insert Compatibility | CCMT 060204 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 0.7874 |
| Head Length Projection (mm) | 20.00 |
| Maximum Hole Depth (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Minimum Hole Diameter (mm) | 20.00 |
| UNSPSC Code | 23242100 |
