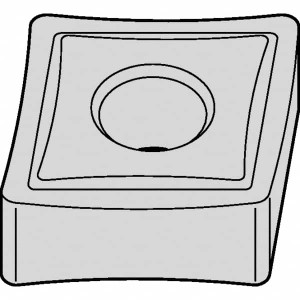

Kennametal CNMP542 KCP25B Carbide Turning Insert TiOCN Finish, Neutral, 0.6346" Long, 5/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond/Rhombic, Series Kenloc 6105089 - 47451570
Brand: Kennametal- SKU:
- 47451570
- ID:
- 672885
$47.53
Kennametal CNMP542 KCP25B Carbide Turning Insert TiOCN Finish, Neutral, 0.6346" Long, 5/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond/Rhombic, Series Kenloc
Manufacturer Part #: 6105089
S/N: 47451570
UNSPSC: 23242105
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMP |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80degree |
| Manufacturer Grade | KCP25B |
| Coating/Finish | TiCN, Al2O3, TiOCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2113 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 5/8in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6346 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6105089 |
| Material Grade | C2, C3, C6, C7 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | Common |
| Cutting Edge Style | Honed |
| Industry Standard Number | CNMP542 |
| Width (Decimal Inch - 4 Decimals) | 0.6250in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 542 |
