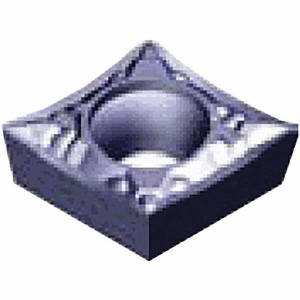

Tungaloy CCGT09T301FN-JS SH725 Carbide Turning Insert TiAlN Finish, Neutral, 9.7mm Long, 3/8" Inscribed Circle, 0.1mm Corner Radius, 5/32" Thick, 80° Diamond, Series TurnLine 6737131 - 47616339
Brand: Tungaloy- SKU:
- 47616339
- ID:
- 678067
$31.27
Tungaloy CCGT09T301FN-JS SH725 Carbide Turning Insert TiAlN Finish, Neutral, 9.7mm Long, 3/8" Inscribed Circle, 0.1mm Corner Radius, 5/32" Thick, 80° Diamond, Series TurnLine
Manufacturer Part #: 6737131
S/N: 47616339
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 80degree |
| Manufacturer Grade | SH725 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CCGT#N-JS |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.52 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8in |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (mm) | 9.70 |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Iso Code | CCGT 09T301FN |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6737131 |
| Material Grade | P20, P30, M20, M30 |
| Coating Classification | PVD |
| Chip Breaker | JS |
| Rake Angle | 10 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | CCGT 32.50 FN-JS |
| Width (Decimal Inch - 4 Decimals) | 0.3750in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.50 |
