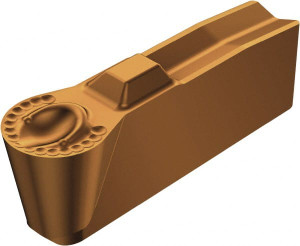

Sandvik Coromant N151.3-400-30-7P 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 4mm Cutting Width, 1.7mm Max Depth, Series T-Max Q-Cut 5736992 - 48395933
Brand: Sandvik Coromant- SKU:
- 48395933
- ID:
- 651159
$26.68
Sandvik Coromant N151.3-400-30-7P 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 4mm Cutting Width, 1.7mm Max Depth, Series T-Max Q-Cut
Manufacturer Part #: 5736992
S/N: 48395933
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N151.3 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0669 |
| Maximum Depth of Cut (mm) | 1.70 |
| Insert Material | Solid Carbide |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Rake | Positive |
| Insert Size | 30 |
| Cutting Height (mm) | 5.28 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Cutting Height (Decimal Inch) | 0.2081 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Multi-use Tool | Yes |
| Series | T-Max Q-Cut |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.4250 |
| Iso Code | N151.3-400-30-7P 1125 |
| Minimum Corner Radius (Decimal Inch) | 0.0787 |
| Manufacturers Catalog Number | N151.3-400-30-7P 1125 |
| Insert Thickness (Decimal Inch) | 0.2081 |
| UNSPSC Code | 23242105 |
| Chip Breaker | 7P |
| Insert Seat Size | 30 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1580 |
| Coating/Finish | TiAlN |
