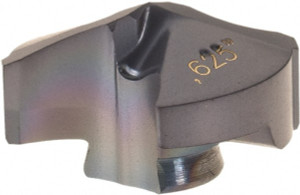

Ingersoll Cutting Tools YAB1590R01 IN2005 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 15.9mm Diam, Series Y 5100155 - 48550552
Brand: Ingersoll Cutting Tools- SKU:
- 48550552
- ID:
- 656507
$168.00
Ingersoll Cutting Tools YAB1590R01 IN2005 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 15.9mm Diam, Series Y
Manufacturer Part #: 5100155
S/N: 48550552
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
Cutting Diameter (mm) | 15.90 |
Point Angle | 140 |
Tip Material | Solid Carbide |
Manufacturer Grade | IN2005 |
Material Grade | Micro Grain |
Series | YAB |
Coating Process | PVD |
Insert Seat Size | 15 |
Functional Length (Decimal Inch) | 0.1780 |
Primary Workpiece Material | Universal |
Primary Workpiece Material Code | P, M, K, S, H |
Height (Decimal Inch) | 0.292000 |
Drill Point Angle | 140 |
Insert Holding Method | Twist |
ISO Number | YAB1590R01 |
Coolant Through | No |
Overall Length/Projection (mm) | 0.29 |
Coating Classification | PVD |
Applications | Drilling |
Coating/Finish | TiAlN, TiN |
Included Angle Degree | 140 |
Number Of Flutes | 2 |
