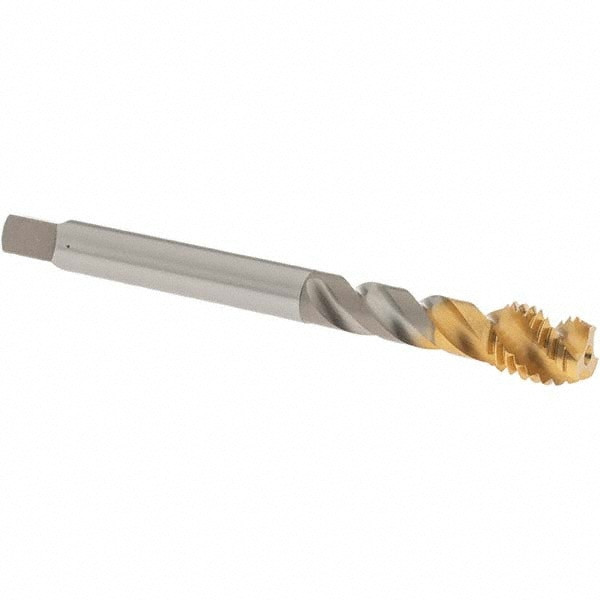

OSG Spiral Flute Tap: M12x1.75 Metric Coarse, 3 Flutes, Modified Bottoming, 6H Class of Fit, Vanadium High Speed Steel, TIN Coated 110 mm OAL, Right Hand Thread 2392305 - 48553135
Brand: OSG USA, INC.- SKU:
- 48553135
- ID:
- 772077
$124.49
OSG Spiral Flute Tap: M12x1.75 Metric Coarse, 3 Flutes, Modified Bottoming, 6H Class of Fit, Vanadium High Speed Steel, TIN Coated 110 mm OAL, Right Hand Thread
Manufacturer Part #: 2392305
S/N: 48553135
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M12x1.75 |
| Thread Standard | M |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Class Of Fit | 6H |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | Yes |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Oversize | No |
| Threads per Inch | 0 |
| Thread Length (mm) | 14 |
| Overall Length (mm) | 11 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Shank Diameter (mm) | 9.3218 |
| Neck Length (mm) | 49.1 |
| Square Length (mm) | 11.1125 |
| Square Length (Decimal Inch) | 0 |
| Square Size (Decimal Inch) | 0 |
| Square Size (mm) | 6.985 |
| Flute Style | Spiral |
| Series | 239 |
