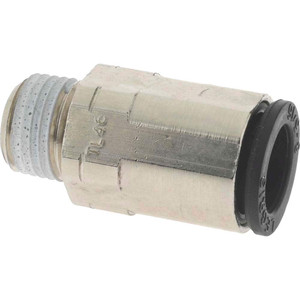

Legris 5/16" Outside Diam, 1/8 NPT, Nickel Plated Brass Push-to-Connect Tube Male Connector 290 Max psi 3175 08 11 - 48617500

Legris 5/16" Outside Diam, 1/8 NPT, Nickel Plated Brass Push-to-Connect Tube Male Connector 290 Max psi 3175 08 11 - 48617500

Brand:   Legris
SKU:
48617500
ID:
540311
UPC:
820099246598
callling
$12.82
Current Stock:
Adding to cart… The item has been added

Parker Hannifin CorporationLegris

Legris 5/16" Outside Diam, 1/8 NPT, Nickel Plated Brass Push-to-Connect Tube Male Connector 290 Max psi

Manufacturer Part #: 3175 08 11

S/N: 48617500

UNSPSC: 27121707

UPC: 820099246598

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection TypeTube x MNPT
MaterialNickel-Plated Brass
Tube Outside Diameter (mm)8.00
Tube Outside Diameter5/16
Maximum Working Pressure (Psi - 3 Decimals)290
Standards2011/65/EC, DI 1907/2006 (REACH), DI 2002/95/EC (RoHS), DI 97/23/EC (PED), ISO 14743
Thread TypeNPT
Minimum Work Temperature (F)-4
Maximum Work Temperature (Deg F - 3 Decimals)175
Product Service Code4720
UNSPSC Code27121700
