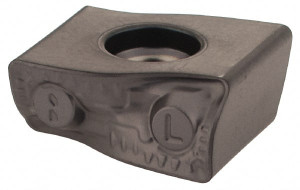

Iscar LNMX 150608L-HT IC907 Carbide Turning Insert TiAlN/TiN Finish, 15mm Long, 1/32" Corner Radius, 90° Rectangle, Series Heliturn 5506192 - 48776637
Brand: Iscar- SKU:
- 48776637
- ID:
- 670900
$24.58
Iscar LNMX 150608L-HT IC907 Carbide Turning Insert TiAlN/TiN Finish, 15mm Long, 1/32" Corner Radius, 90° Rectangle, Series Heliturn
Manufacturer Part #: 5506192
S/N: 48776637
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | LNMX |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 90.0 |
| Manufacturer Grade | IC907 |
| Coating/Finish | TiAlN, TiN |
| Insert Hand | Left Hand |
| Insert Thickness | 13.40 |
| Insert Thickness (Decimal Inch) | 0.5276 |
| Series | Heliturn |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Insert Shape Code | L |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (mm) | 15.00 |
| Insert Length (Decimal Inch) | 0.5906 |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Cutting Direction | Left Hand |
| Material Grade | Submicron |
| Chip Breaker | HT |
| Insert Size Code | 150608 |
