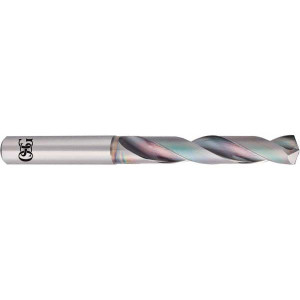

OSG 13mm 140° Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL 8673300 - 48807309
Brand: OSG USA, INC.- SKU:
- 48807309
- ID:
- 726014
$275.37
OSG 13mm 140° Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 124mm OAL
Manufacturer Part #: 8673300
S/N: 48807309
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 13.00 |
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | R-Thinned |
| Primary Workpiece Material | Steel, Alloy Steel, Cast Iron |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | EgiAs |
| Primary Workpiece Material Code | P, K, H |
| Overall Length (mm) | 124.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 77.00 |
| Series | 6310 |
| Tool Application | Blind Hole, Cross Hole, Drilling, Self-Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 14.00 |
| Drill Bit Diameter Tolerance | +0 to -0.027 mm |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 12.50 - 15.00 |
| UNSPSC Code | 23241634 |
