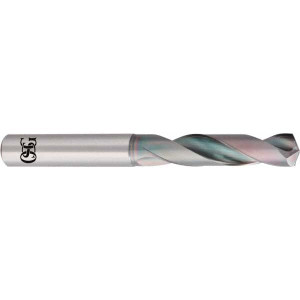

OSG 7/16" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit EgiAs Finish, Right Hand Cut, 55mm Flute Length, 102mm OAL, Straight Shank 630043711 - 48817738
Brand: OSG USA, INC.- SKU:
- 48817738
- ID:
- 739403
$233.78
OSG 7/16" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit EgiAs Finish, Right Hand Cut, 55mm Flute Length, 102mm OAL, Straight Shank
Manufacturer Part #: 630043711
S/N: 48817738
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 7/16 |
| Drill Bit Size (mm) | 11.11 |
| Drill Bit Size (Decimal Inch) | 0.4375 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Primary Workpiece Material | Steel, Alloy Steel, Cast Iron |
| Overall Length (mm) | 102.00 |
| Series | 6300 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 2xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.027 mm |
| Flute Length (mm) | 55.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
