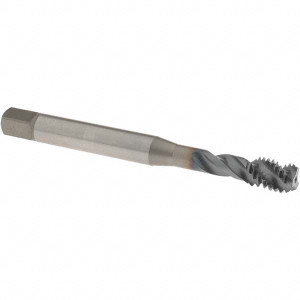

OSG Spiral Flute Tap: 3/8-16 UNC, 3 Flutes, Bottoming, 2B Class of Fit, Powdered Metal, V Coated 12.7 mm Thread Length, 100 mm OAL, Right Hand Thread, H5, Series 16505 1650511708 - 49194376
Brand: OSG USA, INC.- SKU:
- 49194376
- ID:
- 771580
$46.48
OSG Spiral Flute Tap: 3/8-16 UNC, 3 Flutes, Bottoming, 2B Class of Fit, Powdered Metal, V Coated 12.7 mm Thread Length, 100 mm OAL, Right Hand Thread, H5, Series 16505
Manufacturer Part #: 1650511708
S/N: 49194376
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 3/8-16 |
| Thread Standard | UNC |
| Chamfer | Bottoming |
| Material | Powdered Metal |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Coating/Finish | V |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Alloy Steel, Aluminum, Cast Aluminum, Cast Iron, Hardened Steel, High-Carbon Steel, Low-Carbon Steel, Medium-Carbon Steel, Stainless Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Threads per Inch | 16 |
| Thread Length (Decimal Inch) | 0.5 |
| Thread Length (mm) | 12.70 |
| Overall Length (Decimal Inch) | 3.937 |
| Overall Length (mm) | 100.00 |
| Shank Diameter (Decimal Inch) | 0.381 |
| Neck Length (Decimal Inch) | 1.535 |
| Tapping Depth (mm) | 39.00 |
| Square Length (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.286 |
| Flute Style | Spiral |
| Series | 16505 |
| Helix Angle Range | 15 to 45 |
