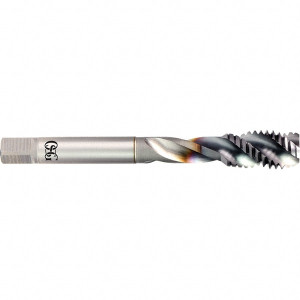

OSG Spiral Flute Tap: 1-1/4-7 UNF, 4 Flutes, Semi-Bottoming, 2B Class of Fit, Powdered Metal, TICN Coated 180 mm OAL, Right Hand Thread, H10, Series 16505 1650507408 - 49194657
Brand: OSG USA, INC.- SKU:
- 49194657
- ID:
- 771524
$422.48
OSG Spiral Flute Tap: 1-1/4-7 UNF, 4 Flutes, Semi-Bottoming, 2B Class of Fit, Powdered Metal, TICN Coated 180 mm OAL, Right Hand Thread, H10, Series 16505
Manufacturer Part #: 1650507408
S/N: 49194657
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1-1/4-7 |
| Thread Standard | UNC |
| Chamfer | Modified Bottoming |
| Material | Powdered Metal |
| Thread Limit | H1 |
| Class Of Fit | 2B |
| Coating/Finish | V |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Alloy Steel, Aluminum, Cast Aluminum, Cast Iron, Hardened Steel, High-Carbon Steel, Low-Carbon Steel, Medium-Carbon Steel, Stainless Steel |
| Number Of Flutes | 4 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Threads per Inch | 7 |
| Thread Length (Decimal Inch) | 0.944 |
| Overall Length (Decimal Inch) | 7.87 |
| Overall Length (mm) | 180.00 |
| Shank Diameter (Decimal Inch) | 1.21 |
| Neck Length (Decimal Inch) | 3.93778741575 |
| Square Length (Decimal Inch) | 1 |
| Square Size (Decimal Inch) | 0.766 |
| Flute Style | Spiral |
| Series | 16505 |
| Helix Angle Range | 15 to 45 |
