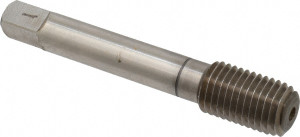

Balax Thread Forming Tap: M16x2.00 Metric Coarse, 4H Class of Fit, Bottoming, High Speed Steel, Bright Finish 1" Thread Length, D7, Series BXMB 19267-000 - 49715295
Brand: Balax- SKU:
- 49715295
- ID:
- 781376
$77.55
Balax Thread Forming Tap: M16x2.00 Metric Coarse, 4H Class of Fit, Bottoming, High Speed Steel, Bright Finish 1" Thread Length, D7, Series BXMB
Manufacturer Part #: 19267-000
S/N: 49715295
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M16x2 |
| Thread Standard | Metric |
| Chamfer | Bottoming |
| Chamfered Threads | 2.5P |
| Material | High-Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Class Of Fit | 4H |
| Thread Limit | D7 |
| Overall Length (Inch) | 3-19/32 |
| Overall Length (Decimal Inch) | 3.5938 |
| Overall Length (mm) | 91.28 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 1 |
| Thread Length (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Shank Diameter (mm) | 12.19 |
| Application | Blind Hole Threading |
| Series | BXMB |
| Square Size (Decimal Inch) | 0.3600 |
| Square Size (mm) | 9.14 |
| Oil Grooves | 1 |
| UNSPSC Code | 23241600 |
