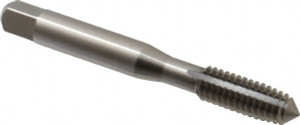

Balax Thread Forming Tap: 5/16-18 UNC, Plug, High Speed Steel, Bright Finish H9, Series BXP 13109-000 - 49718364
Brand: Balax- SKU:
- 49718364
- ID:
- 781296
$22.19
Balax Thread Forming Tap: 5/16-18 UNC, Plug, High Speed Steel, Bright Finish H9, Series BXP
Manufacturer Part #: 13109-000
S/N: 49718364
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 5/16-18 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Chamfered Threads | 4P |
| Material | High-Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Class Of Fit | 2B |
| Thread Limit | H9 |
| Overall Length (Inch) | 2-23/32 |
| Overall Length (Decimal Inch) | 2.7188 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.8800 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Application | Through-Hole Threading |
| Series | BXP |
| Tapping Depth (Decimal Inch) | 1.1250 |
| Square Size (Decimal Inch) | 0.2380 |
| Oil Grooves | 1 |
| UNSPSC Code | 23241600 |
