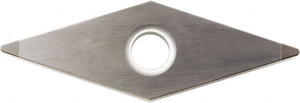

KYOCERA VNGA3305S00525ME CBN Turning Insert Megacoat Finish, Neutral, 3/8" Inscribed Circle, 0.008" Corner Radius, 3/16" Thick, 35° Diamond 8832758 - 50387216
Brand: KYOCERA- SKU:
- 50387216
- ID:
- 674017
$100.37
KYOCERA VNGA3305S00525ME CBN Turning Insert Megacoat Finish, Neutral, 3/8" Inscribed Circle, 0.008" Corner Radius, 3/16" Thick, 35° Diamond
Manufacturer Part #: 8832758
S/N: 50387216
UNSPSC: 23000000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | VNGA |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35degree |
| Manufacturer Grade | KBN05M |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond 35 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 3/8in |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | VNGA160402S01225ME |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | TBN06006 |
| Material Grade | H01, H10 |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | PVD |
| Cutting Edge Style | Honed |
| Industry Standard Number | VNGA3305S00525MEKBN05M |
| Width (Decimal Inch - 4 Decimals) | 0.3750in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Copying, External Turning, Facing, Undercutting |
| Tip Length (Decimal Inch) | 0.0906 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3305 |
