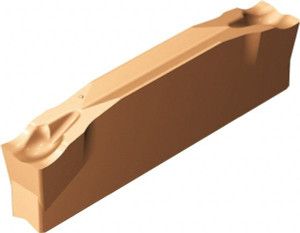

Sandvik Coromant N123D201500002-CM 1125 Carbide Cutoff Insert TiAlN Finish, 0° Neutral Lead Angle, Neutral Insert, 1.5mm Cutting Width, 0.2mm Corner Radius, Series CoroCut 1-2 5736462 - 50858133
Brand: Sandvik Coromant- SKU:
- 50858133
- ID:
- 647584
$52.13
Sandvik Coromant N123D201500002-CM 1125 Carbide Cutoff Insert TiAlN Finish, 0° Neutral Lead Angle, Neutral Insert, 1.5mm Cutting Width, 0.2mm Corner Radius, Series CoroCut 1-2
Manufacturer Part #: 5736462
S/N: 50858133
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123x2 |
| Insert Size Code | D |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1125 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Cutting Width (mm) | 1.50 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Series | CoroCut 1-2 |
| Coating Process | PVD |
| Overall Length (mm) | 13.70 |
| Overall Length (Decimal Inch) | 0.5394 |
| Manufacturers Catalog Number | N123D2-0150-0002-CM 1125 |
| Maximum Depth of Cut (mm) | 12.90 |
| Insert Seat Size | D |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.5079 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0591 |
| Overall Width (mm) | 1.50 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23242105 |
