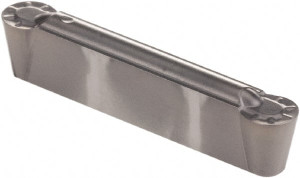

Kennametal A4R125I03P00GMN KCU10 Carbide Grooving Insert AlTiN Finish, Neutral, 3.18mm Cutting Width, 2.72mm Max Depth, Series A4 4034826 - 50896455
Brand: Kennametal- SKU:
- 50896455
- ID:
- 650261
$45.42
Kennametal A4R125I03P00GMN KCU10 Carbide Grooving Insert AlTiN Finish, Neutral, 3.18mm Cutting Width, 2.72mm Max Depth, Series A4
Manufacturer Part #: 4034826
S/N: 50896455
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | R |
| Cutting Width (Decimal Inch) | 0.1252 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1070 |
| Maximum Depth of Cut (mm) | 2.72 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.0625 |
| Corner Radius (mm) | 1.59 |
| Insert Size | 125 |
| Material Grade | C3, C4 |
| Cutting Height (mm) | 4.02 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.1583 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Corner Radius (Inch) | 1/16 |
| Multi-use Tool | Yes |
| Series | A4 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7874 |
| Manufacturers Catalog Number | A4R125I03P00GMN |
| UNSPSC Code | 23242105 |
| Chip Breaker | GMN |
| Coating/Finish | AlTiN |
