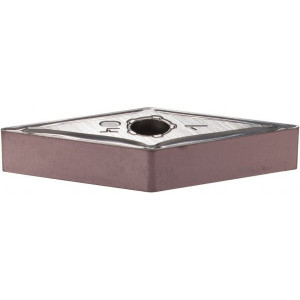

Iscar VNMG331M3M IC806 Carbide Turning Insert TiAlN Finish, 16.61mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond, Series Isoturn 5566749 - 50938703
Brand: Iscar- SKU:
- 50938703
- ID:
- 670185
$30.97
Iscar VNMG331M3M IC806 Carbide Turning Insert TiAlN Finish, 16.61mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond, Series Isoturn
Manufacturer Part #: 5566749
S/N: 50938703
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | VNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35.0 |
| Manufacturer Grade | IC806 |
| Coating/Finish | TiAlN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | V |
| Single Or Double End | Double |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Positive |
| Insert Length (mm) | 16.61 |
| Insert Length (Decimal Inch) | 0.6540 |
| Primary Workpiece Material | Superalloy, Titanium |
| Primary Workpiece Material Code | S |
| Iso Code | VNMG 331-M3M |
| Standards | ISO 13399 |
| Material Grade | Submicron |
| Proprietary Coating Designation | SumoTec |
| Chip Breaker | M3M |
| Full Radius | No |
| Insert Size Code | 331 |
