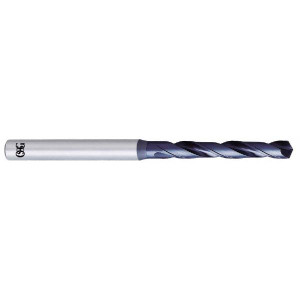

OSG #15 130° Powdered Metal Jobber Drill V Finish, Right Hand Cut, Spiral Flute, Straight Shank, 91mm OAL, Standard Point 8612457 - 50974674
Brand: OSG USA, INC.- SKU:
- 50974674
- ID:
- 725314
$67.98
OSG #15 130° Powdered Metal Jobber Drill V Finish, Right Hand Cut, Spiral Flute, Straight Shank, 91mm OAL, Standard Point
Manufacturer Part #: 8612457
S/N: 50974674
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #15 |
| Drill Bit Size (mm) | 4.57 |
| Drill Bit Size (Decimal Inch) | 0.1800 |
| Drill Bit Material | Powdered Metal |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | V |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | R-Thinned |
| Primary Workpiece Material | Steel, Alloy Steel, Cast Iron, Nickel Alloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P, K, S, H |
| Overall Length (mm) | 91.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 47.00 |
| Series | 1950 |
| Tool Application | Blind Hole, Cross Hole, Drilling, Self-Centering |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Diameter Tolerance | +0 to -0.018 mm |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| UNSPSC Code | 23241634 |
