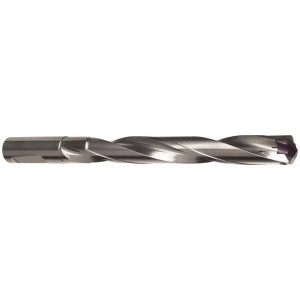

Guhring 11.5 to 11.99mm, 86.1mm Max Depth, 12mm Shank Diam, 104mm Flute, 151mm OAL, Replaceable-Tip Drill Uses HT 800 WP Inserts, Series 4109 9041090115000 - 51483543
Brand: Guhring- SKU:
- 51483543
- ID:
- 645072
$587.59
Guhring 11.5 to 11.99mm, 86.1mm Max Depth, 12mm Shank Diam, 104mm Flute, 151mm OAL, Replaceable-Tip Drill Uses HT 800 WP Inserts, Series 4109
Manufacturer Part #: 9041090115000
S/N: 51483543
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (mm) | 11.50 |
| Maximum Drill Diameter (mm) | 11.99 |
| Maximum Drill Depth (mm) | 86.10 |
| Maximum Drill Depth (Decimal Inch) | 3.3898 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00mm |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | HT 800 WP |
| Overall Length (mm) | 151.00mm |
| Overall Length (Decimal Inch) | 5.9449in |
| Series | 4109 |
| Flute Length (mm) | 104.00 |
| Flute Length (Decimal Inch) | 4.0945 |
| Shank Length (Decimal Inch) | 1.7717in |
| Shank Length (mm) | 45.00mm |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
