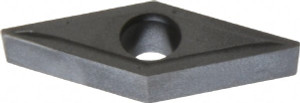

Value Collection VBMT331 ICP22 Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond ICP62120L - 51518348
Brand: Value Collection- SKU:
- 51518348
- ID:
- 678271
$48.42
Value Collection VBMT331 ICP22 Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond
Manufacturer Part #: ICP62120L
S/N: 51518348
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | VBMT331 |
| ISO Insert Code | VBMT160404 |
| Relief Angle | 5 |
| Insert Style | VBMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35 |
| Manufacturer Grade | ICP22 |
| Coating/Finish | Al2O3 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Side Clearance | Positive |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Insert Holding Method | Screw |
| Clearance Code | B |
| Tolerance Code | M |
| Primary Workpiece Material Code | K, N |
| Material Grade | C2 |
| Chip Breaker | T |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
