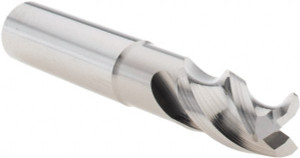

Iscar 1/2" Diam 3 Flute Solid Carbide 0.03" Corner Radius End Mill Uncoated, 3" OAL, 3/4" LOC, 1/2" Shank Diam, Variable° Helix, RH Cut, RH Flute, 1-1/2" Extended Reach 5622933 - 51721926
Brand: Iscar- SKU:
- 51721926
- ID:
- 615783
$163.98
Iscar 1/2" Diam 3 Flute Solid Carbide 0.03" Corner Radius End Mill Uncoated, 3" OAL, 3/4" LOC, 1/2" Shank Diam, Variable° Helix, RH Cut, RH Flute, 1-1/2" Extended Reach
Manufacturer Part #: 5622933
S/N: 51721926
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Length Type | Short |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Reach Length (Decimal Inch) | 1.5000 |
| Reach Length (Inch) | 1-1/2 |
| Mill Diameter Tolerance | h6 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | Fine Grain |
| Series | ECAI-H3-CF |
| Material Application | Non-Ferrous Metal |
| Coating Classification | Uncoated |
| For Use With. | Toolholder |
| Helix Style | Variable |
