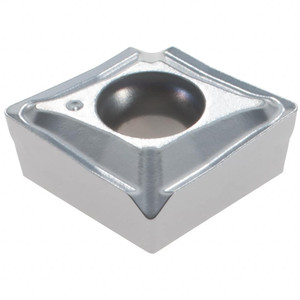

Ingersoll Cutting Tools XCMT070304 TC TT8020 Carbide Turning Insert 1/8" Thick, 83.5° Diamond 5516547 - 51728988
Brand: Ingersoll Cutting Tools- SKU:
- 51728988
- ID:
- 669869
$27.71
Ingersoll Cutting Tools XCMT070304 TC TT8020 Carbide Turning Insert 1/8" Thick, 83.5° Diamond
Manufacturer Part #: 5516547
S/N: 51728988
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | XCMT |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 83.5 |
| Manufacturer Grade | TT8020 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | XCMT |
| Inscribed Circle (Decimal Inch) | 0.2950 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | X |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2950 |
| Primary Workpiece Material | Stainless Steel, Steel, Superalloy, Titanium |
| Primary Workpiece Material Code | M, P, S |
| Iso Code | XCMT070304TC TT8020 |
| Standards | ISO |
| Chip Breaker | TC |
| Insert Size Code | 070304 |
