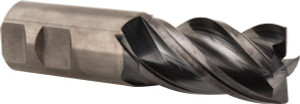

Kennametal 1-1/4" Diam 4 Flute Solid Carbide 0.015" Chamfer Width Corner Chamfer End Mill AlTiN Finish, 5" OAL, 2-1/4" LOC, 1-1/4" Shank Diam, Variable° Helix 4067331 - 51868735
Brand: Kennametal- SKU:
- 51868735
- ID:
- 616284
$850.87
Kennametal 1-1/4" Diam 4 Flute Solid Carbide 0.015" Chamfer Width Corner Chamfer End Mill AlTiN Finish, 5" OAL, 2-1/4" LOC, 1-1/4" Shank Diam, Variable° Helix
Manufacturer Part #: 4067331
S/N: 51868735
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1-1/4 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 5.0000 |
| Chipbreaker | No |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Regular |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Reach Length (Decimal Inch) | 2.2500 |
| Reach Length (Inch) | 2-1/4 |
| Mill Diameter Tolerance | +0.0000 to -0.0020 in |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Hard Material |
| Primary Workpiece Material Code | P, M, K, H |
| Material Grade | KCPM15 |
| Series | HPHV |
| Additional Information | Shouldering, Slotting, Rampdown, Helical Interpolation, Drill Mill, Plunging & Recessing |
| Coating Classification | PVD |
| Chamfer Length (Decimal Inch) | 0.0200 |
| Helix Style | Medium |
| Manufacturers Catalog Number | HPHV1250S4225CH |
