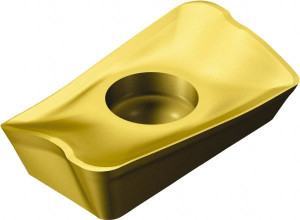

Sandvik Coromant R390-170404E-MM 2030 Carbide Milling Insert TiAlN/TiN Finish, 15.7mm Long x 3/16" Thick x 9.6mm Wide 5745986 - 52064276
Brand: Sandvik Coromant- SKU:
- 52064276
- ID:
- 661814
$51.80
Sandvik Coromant R390-170404E-MM 2030 Carbide Milling Insert TiAlN/TiN Finish, 15.7mm Long x 3/16" Thick x 9.6mm Wide
Manufacturer Part #: 5745986
S/N: 52064276
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | R390 |
| Insert Size | 17 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | 2030 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Thickness (mm) | 4.76 |
| Coating/Finish | TiAlN, TiN |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Maximum Depth of Cut (mm) | 15.70 |
| Insert Size Code | 170404 |
| Material Grade | P30, M25, S20 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Inscribed Circle (mm) | 9.60 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Series | R390 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.16 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | R390-17 04 04E-MM 2030 |
| Iso Code | R390-17 04 04E-MM 2030 |
| Standards | ANSI, ISO |
| Rake Angle | 22 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R390-17 04 04E-MM 2030 |
| Cutter Series Compatibility | R390 |
| Chip Breaker | MM |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 15.70 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Width (mm - 2 Decimals) | 9.60 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6181 |
