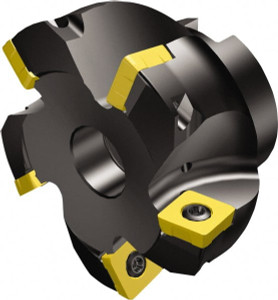

Sandvik Coromant 52.2mm Cut Diam, 1" Arbor Hole Diam, 2mm Max Depth, Indexable Square-Shoulder Face Mill Takes 5 Inserts, 10° Lead Angle, 50.0126mm High, R210-140512M Insert Style, Through Coolant, Series CoroMill 210 5739872 - 52064730
Brand: Sandvik Coromant- SKU:
- 52064730
- ID:
- 680857
$1,427.73
Sandvik Coromant 52.2mm Cut Diam, 1" Arbor Hole Diam, 2mm Max Depth, Indexable Square-Shoulder Face Mill Takes 5 Inserts, 10° Lead Angle, 50.0126mm High, R210-140512M Insert Style, Through Coolant, Series CoroMill 210
Manufacturer Part #: 5739872
S/N: 52064730
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Decimal Inch) | 2.0551 |
| Maximum Cutting Diameter (mm) | 52.20 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | R210-140512M |
| Cutter Style | RA210 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp, Screw |
| Lead Angle | 10 |
| Rake | Positive |
| Series | CoroMill 210 |
| Maximum Body Diameter (Decimal Inch) | 2.0551 |
| Overall Height (Mm - 5 Decimals) | 50.01 |
| Overall Height (Decimal Inch) | 1.9690 |
| Keyway Width (mm) | 9.75 |
| Keyway Width (Decimal Inch) | 0.3839 |
| Hub Diameter (mm) | 25.40 |
| Hub Diameter (Decimal Inch) | 1.1000 |
| Hub Diameter (Inch) | 1 |
| Pitch Type | Close |
| Cutting Edge Length (Decimal Inch) | 0.0787 |
| Complete Insert Compatibility | R210-140512M- |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
