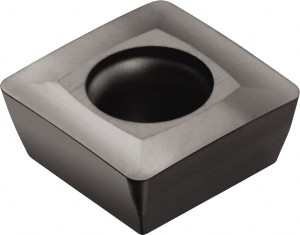

Sandvik Coromant SPMT432-WH H13A Carbide Milling Insert Uncoated, 4.75mm Thick 5751098 - 52066461
Brand: Sandvik Coromant- SKU:
- 52066461
- ID:
- 662293
$22.05
Sandvik Coromant SPMT432-WH H13A Carbide Milling Insert Uncoated, 4.75mm Thick
Manufacturer Part #: 5751098
S/N: 52066461
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SPMT |
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | H13A |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Thickness (mm) | 4.75 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4685 |
| Insert Size Code | 432 |
| Material Grade | K20, N15, S20 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | SPMT |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Superalloys & Titanium |
| Primary Workpiece Material Code | K, N, S |
| Ansi Code | SPMT432-WH H13A |
| Iso Code | SPMT 12 04 08-WH H13A |
| Standards | ANSI, ISO |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | SPMT432-WH H13A |
| Cutter Series Compatibility | R215.64, RA215.64 |
| Chip Breaker | WH |
| Material Application | Cast Iron, Non-Ferrous Metal, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
