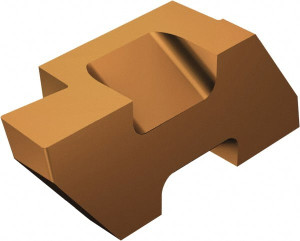

Sandvik Coromant TLG3078L 1125 Carbide Grooving Insert TiCrAlN/TiAlN Finish, LH, 1.98mm Cutting Width, 3/32" Max Depth, Series Top Lok 5753053 - 52068400
Brand: Sandvik Coromant- SKU:
- 52068400
- ID:
- 651101
$56.45
Sandvik Coromant TLG3078L 1125 Carbide Grooving Insert TiCrAlN/TiAlN Finish, LH, 1.98mm Cutting Width, 3/32" Max Depth, Series Top Lok
Manufacturer Part #: 5753053
S/N: 52068400
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | TLG |
| Cutting Width (Decimal Inch) | 0.0780 |
| Cutting Width (mm) | 1.98 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 2.39 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1125 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Neutral |
| Insert Size | 3 |
| Maximum Depth of Cut (Inch) | 3/32 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | Yes |
| Series | Top Lok |
| Coating Process | PVD |
| Rake Angle | 10.00 |
| Overall Length (Decimal Inch) | 0.6339 |
| Iso Code | TLG-3078L 1125 |
| Maximum Corner Radius (Decimal Inch) | 0.0075 |
| Minimum Corner Radius (Decimal Inch) | 0.0075 |
| Manufacturers Catalog Number | TLG-3078L 1125 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| UNSPSC Code | 23242105 |
| Insert Seat Size | 3 |
| Overall Width (mm) | 1.98 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0780 |
| Coating/Finish | TiCrAlN, TiAlN |
