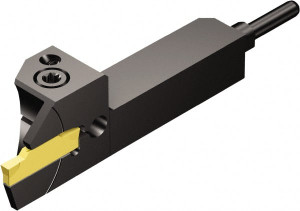

Sandvik Coromant 17mm Max Depth, 1.85mm to 2.39mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder 70mm OAL, 5/8 x 5/8" Shank, Uses N123E2-0200-CM Inserts, QS-LF123 BHP Toolholder, Through Coolant, Series CoroCut 1-2 6224919 - 52069325
Brand: Sandvik Coromant- SKU:
- 52069325
- ID:
- 686159
$663.00
Sandvik Coromant 17mm Max Depth, 1.85mm to 2.39mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder 70mm OAL, 5/8" x 5/8" Shank, Uses N123E2-0200-CM Inserts, QS-LF123..BHP Toolholder, Through Coolant, Series CoroCut 1-2
Manufacturer Part #: 6224919
S/N: 52069325
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Groove Width (mm) | 2.39 |
| Minimum Groove Width (Decimal Inch) | 0.0728 |
| Minimum Groove Width (mm) | 1.85 |
| Toolholder Style | QS-LF123..BHP |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | N123E2 |
| Insert Compatibility | N123E2-0200-CM |
| Shank Height (mm) | 15.88 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Length (mm) | 44.00 |
| Shank Length (Decimal Inch) | 1.7323 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Inch) | 5/8 |
| Series | CoroCut 1-2 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Cutting Tool Application | Cut-Off, Grooving, Parting |
| Maximum Overhang (Inch) | 1.0236 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Head Height (Decimal Inch) | 0.6250 |
| Head Height (mm) | 15.88 |
| Head Length (Decimal Inch) | 0.6250 |
| Head Length (mm) | 15.88 |
| Manufacturers Catalog Number | QS-LF123E067-10BHP |
| Coolant Through | Yes |
| UNSPSC Code | 27112809 |
