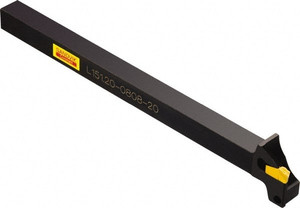

Sandvik Coromant 17.5mm Max Depth, 3mm to 4.15mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 4" OAL, 5/8" x 5/8" Shank, Uses N151.2-300-5E Inserts, R/L151.20 Toolholder, Series T-Max Q-Cut 5742210 - 52069457
Brand: Sandvik Coromant- SKU:
- 52069457
- ID:
- 686087
$313.53
Sandvik Coromant 17.5mm Max Depth, 3mm to 4.15mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 4" OAL, 5/8" x 5/8" Shank, Uses N151.2-300-5E Inserts, R/L151.20 Toolholder, Series T-Max Q-Cut
Manufacturer Part #: 5742210
S/N: 52069457
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Maximum Depth of Cut (mm) | 17.50 |
| Maximum Groove Width (mm) | 4.15 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | R/L151.20 |
| Insert Holding Method | Clamp |
| Insert Compatibility | N151.2-300-5E |
| Shank Height (mm) | 15.88 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Length (mm) | 75.69 |
| Shank Length (Decimal Inch) | 2.9800 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Inch) | 5/8 |
| Series | T-Max Q-Cut |
| Overall Length (mm) | 101.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.0000 |
| Head Height (Decimal Inch) | 0.6250 |
| Head Height (mm) | 15.88 |
| Head Length (Decimal Inch) | 0.6250 |
| Head Length (mm) | 15.88 |
| Manufacturers Catalog Number | R151.20-10-30 |
| Insert Seat Size | 30.0 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
