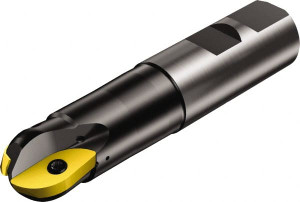

Sandvik Coromant 1/2" Cut Diam, 11.2776mm Max Depth of Cut, 3/4" Shank Diam, 108.75mm OAL, Indexable Ball Nose End Mill 24.7mm Head Length, Weldon Flat Shank, RA216Mxx Toolholder, RA216-1302 Insert 5739114 - 52071164
Brand: Sandvik Coromant- SKU:
- 52071164
- ID:
- 679785
$686.22
Sandvik Coromant 1/2" Cut Diam, 11.2776mm Max Depth of Cut, 3/4" Shank Diam, 108.75mm OAL, Indexable Ball Nose End Mill 24.7mm Head Length, Weldon Flat Shank, RA216Mxx Toolholder, RA216-1302 Insert
Manufacturer Part #: 5739114
S/N: 52071164
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.4440 |
| Maximum Depth of Cut (mm) | 11.28 |
| Shank Type | Weldon Flat |
| Insert Holding Method | Screw |
| Compatible Insert Style | RA216-1302 |
| Toolholder Style | RA216..Mxx |
| Overall Length (Decimal Inch) | 4.2815 |
| Overall Length (mm) | 108.75 |
| Series | CoroMill 216 |
| Head Length (mm) | 24.70 |
| Head Length (Decimal Inch) | 0.9724 |
| Maximum RPM | 21000 |
| Weldon Flat | Yes |
| Projection (Decimal Inch) | 2.2500 |
| Projection (Inch) | 2-1/4 |
| Cutting Diameter (Inch) | 1/2 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
