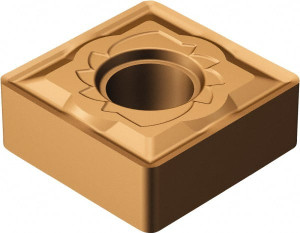

Sandvik Coromant SNMG432-SM 1125 Carbide Turning Insert TiAlN/AlCr2O3 Finish, 8.5mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 90° Square 5915088 - 52072436
Brand: Sandvik Coromant- SKU:
- 52072436
- ID:
- 674741
$25.08
Sandvik Coromant SNMG432-SM 1125 Carbide Turning Insert TiAlN/AlCr2O3 Finish, 8.5mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 90° Square
Manufacturer Part #: 5915088
S/N: 52072436
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 90 |
| Manufacturer Grade | 1125 |
| Coating/Finish | TiAlN, AlCr2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | T-Max P |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (mm) | 8.50 |
| Insert Length (Decimal Inch) | 0.3346 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Superalloy, Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | SNMG 12 04 08-SM 1125 |
| Chip Breaker | SM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
