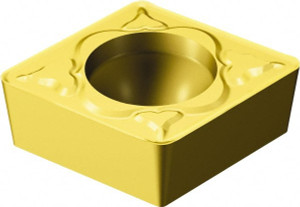

Sandvik Coromant CCMT431-MM 2025 Carbide Turning Insert TiCN/AI2O3/TiN Finish, 12.5mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Diamond 5724953 - 52072451
Brand: Sandvik Coromant- SKU:
- 52072451
- ID:
- 674235
$27.37
Sandvik Coromant CCMT431-MM 2025 Carbide Turning Insert TiCN/AI2O3/TiN Finish, 12.5mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Diamond
Manufacturer Part #: 5724953
S/N: 52072451
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80 |
| Manufacturer Grade | 2025 |
| Coating/Finish | TiCN, AI2O3, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | CoroTurn 107 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (mm) | 12.50 |
| Insert Length (Decimal Inch) | 0.4920 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | CCMT 12 04 04-MM 2025 |
| Chip Breaker | MM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
