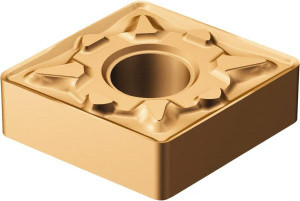

Sandvik Coromant CNMG433-MM 1125 Carbide Turning Insert TiAlN/AlCr2O3 Finish, 11.7mm Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 80° Diamond 5724979 - 52073160
Brand: Sandvik Coromant- SKU:
- 52073160
- ID:
- 675576
$23.22
Sandvik Coromant CNMG433-MM 1125 Carbide Turning Insert TiAlN/AlCr2O3 Finish, 11.7mm Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 80° Diamond
Manufacturer Part #: 5724979
S/N: 52073160
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 80 |
| Manufacturer Grade | 1125 |
| Coating/Finish | TiAlN, AlCr2O3 |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (mm) | 11.70 |
| Insert Length (Decimal Inch) | 0.4605 |
| Iso Code | CNMG 12 04 12-MM 1125 |
| Chip Breaker | G |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
