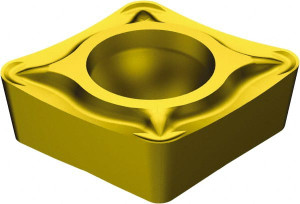

Sandvik Coromant CCMT32.52-UM 2025 Carbide Turning Insert TiCN/AI2O3/TiN Finish, 8.87mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80° Diamond 5723748 - 52074853
Brand: Sandvik Coromant- SKU:
- 52074853
- ID:
- 675461
$20.98
Sandvik Coromant CCMT32.52-UM 2025 Carbide Turning Insert TiCN/AI2O3/TiN Finish, 8.87mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80° Diamond
Manufacturer Part #: 5723748
S/N: 52074853
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80 |
| Manufacturer Grade | 2025 |
| Coating/Finish | TiCN, AI2O3, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CoroTurn 107 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (mm) | 8.87 |
| Insert Length (Decimal Inch) | 0.3493 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | CCMT 09 T3 08-UM 2025 |
| Chip Breaker | UM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
