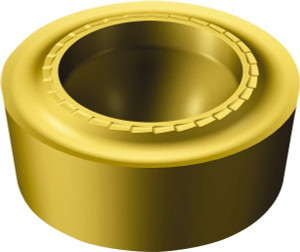

Sandvik Coromant RCMT12 04 M0-SM S05F Carbide Turning Insert TiCN/AI2O3/TiN Finish, 3/16" Long, 12mm Inscribed Circle, 3/16" Thick, Round 5740727 - 52076627
Brand: Sandvik Coromant- SKU:
- 52076627
- ID:
- 675012
$25.67
Sandvik Coromant RCMT12 04 M0-SM S05F Carbide Turning Insert TiCN/AI2O3/TiN Finish, 3/16" Long, 12mm Inscribed Circle, 3/16" Thick, Round
Manufacturer Part #: 5740727
S/N: 52076627
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | RCMT |
| Manufacturer Grade | S05F |
| Coating/Finish | TiCN, AI2O3, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | CoroTurn 107 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (mm) | 4.76 |
| Insert Length (Decimal Inch) | 0.1875 |
| Insert Length (Inch) | 3/16 |
| Primary Workpiece Material | Superalloy, Titanium |
| Primary Workpiece Material Code | S |
| Iso Code | RCMT 12 04 M0-SM S05F |
| Chip Breaker | SM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1204 |
