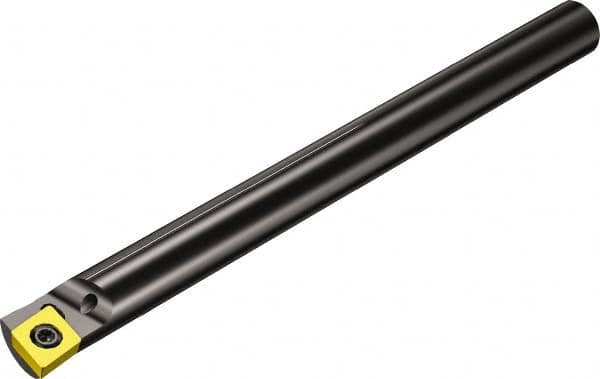

Sandvik Coromant 23.6mm Min Bore, Right Hand A-SCLC Indexable Boring Bar 10" OAL, 3/4" Shank Diam, 0° Lead Angle, Uses CCMT 32.52, A-SCLC Inserts, Through Coolant 5721691 - 52077492
Brand: Sandvik Coromant- SKU:
- 52077492
- ID:
- 684563
$380.80
Sandvik Coromant 23.6mm Min Bore, Right Hand A-SCLC Indexable Boring Bar 10" OAL, 3/4" Shank Diam, 0° Lead Angle, Uses CCMT 32.52, A-SCLC Inserts, Through Coolant
Manufacturer Part #: 5721691
S/N: 52077492
UNSPSC: 23241601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Bore Diameter (mm) | 23.60 |
| Minimum Bore Diameter (Decimal Inch) | 0.9291 |
| Toolholder Style | A-SCLC |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.9291 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.9291 |
| Tool Material | Steel |
| Insert Compatibility | CCMT 32.52 |
| Shank Diameter (mm) | 19.05 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 0.00 |
| Series | CoroTurn 107 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (mm) | 9.53 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 10.0000 |
| Back of Bar to Cutting Edge (mm) | 254.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (Inch) | 1/2 |
| Center to Cutting Edge (mm) | 12.70 |
| Multi-Use Application | Boring, Turning |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.7500 |
| UNSPSC Code | 23241601 |
| Neck Diameter (Inch) | 3/4 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Manufacturers Catalog Number | A12S-SCLCR 3-R |
| Coolant Through | Yes |
