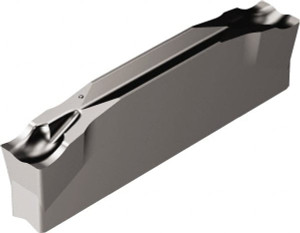

Sandvik Coromant N123F202500002-CM 1105 Carbide Cutoff Insert TiAlN Finish, 0° Neutral Lead Angle, Neutral Insert, 2.5mm Cutting Width, 0.2mm Corner Radius, Series CoroCut 1-2 5735821 - 52078953
Brand: Sandvik Coromant- SKU:
- 52078953
- ID:
- 647724
$51.05
Sandvik Coromant N123F202500002-CM 1105 Carbide Cutoff Insert TiAlN Finish, 0° Neutral Lead Angle, Neutral Insert, 2.5mm Cutting Width, 0.2mm Corner Radius, Series CoroCut 1-2
Manufacturer Part #: 5735821
S/N: 52078953
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123x2 |
| Insert Size Code | F |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1105 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Cutting Width (mm) | 2.50 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Series | CoroCut 1-2 |
| Coating Process | PVD |
| Overall Length (mm) | 19.70 |
| Overall Length (Decimal Inch) | 0.7756 |
| Manufacturers Catalog Number | N123F2-0250-0002-CM 1105 |
| Maximum Depth of Cut (mm) | 18.90 |
| Insert Seat Size | F |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7441 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0984 |
| Overall Width (mm) | 2.50 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23242105 |
