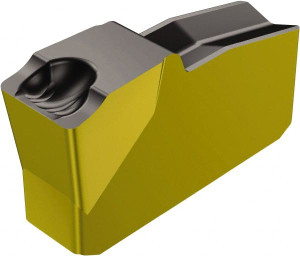

Sandvik Coromant N151.2-500-50-5G 4225 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 5mm Cutting Width, Series T-Max Q-Cut 5738105 - 52079027

Sandvik Coromant N151.2-500-50-5G 4225 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 5mm Cutting Width, Series T-Max Q-Cut 5738105 - 52079027

Brand:   Sandvik Coromant
SKU:
52079027
ID:
651274
callling
$36.11
Current Stock:
Adding to cart… The item has been added

Sandvik Coromant

Sandvik Coromant N151.2-500-50-5G 4225 Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 5mm Cutting Width, Series T-Max Q-Cut

Manufacturer Part #: 5738105

S/N: 52079027

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleN151.2
Cutting Width (Decimal Inch)0.1969
Cutting Width (mm)5.00
Insert HandNeutral
Insert MaterialSolid Carbide
Manufacturer Grade4225
Corner Radius (Decimal Inch)0.0157
Corner Radius (mm)0.40
RakeNeutral
Insert Size50
Cutting Height (mm)8.11
Cutting Height (Decimal Inch)0.3191
Multi-use ToolYes
SeriesT-Max Q-Cut
Coating ProcessMT-CVD
Rake Angle7.00
Overall Length (Decimal Inch)0.2677
Iso CodeN151.2-500-50-5G 4225
Maximum Corner Radius (Decimal Inch)0.0197
Minimum Corner Radius (Decimal Inch)0.0118
Manufacturers Catalog NumberN151.2-500-50-5G 4225
Insert Thickness (Decimal Inch)0.3191
UNSPSC Code23242105
Chip Breaker5G
Insert Seat Size50
Overall Width (mm)5.00
Overall Width (Decimal Inch - 4 Decimals)0.1969
Coating/FinishTiCN/Al2O3/TiN
