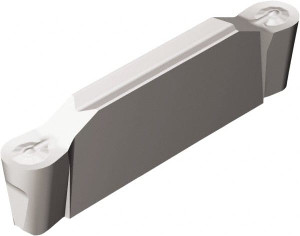

Sandvik Coromant N123E2-0200-RO H13A Carbide Grooving Insert Uncoated, Neutral, 2mm Cutting Width, 19.2mm Max Depth, Series CoroCut 1-2 5735641 - 52079258
Brand: Sandvik Coromant- SKU:
- 52079258
- ID:
- 651345
$41.63
Sandvik Coromant N123E2-0200-RO H13A Carbide Grooving Insert Uncoated, Neutral, 2mm Cutting Width, 19.2mm Max Depth, Series CoroCut 1-2
Manufacturer Part #: 5735641
S/N: 52079258
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123x2 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7560 |
| Maximum Depth of Cut (mm) | 19.20 |
| Insert Material | Solid Carbide |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Rake | Positive |
| Insert Size | E2 |
| Cutting Height (mm) | 4.30 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Overall Length (Decimal Inch) | 0.7890 |
| Iso Code | N123E2-0200-RO H13A |
| Minimum Corner Radius (Decimal Inch) | 0.0394 |
| Manufacturers Catalog Number | N123E2-0200-RO H13A |
| Insert Thickness (Decimal Inch) | 0.1693 |
| UNSPSC Code | 23242105 |
| Chip Breaker | RO |
| Insert Seat Size | E |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0790 |
| Coating/Finish | Bright/Uncoated |
