Sandvik Coromant N123L2-0800-RM 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 8mm Cutting Width, 27mm Max Depth, Series CoroCut 1-2 5736390 - 52079274
Brand: Sandvik Coromant- SKU:
- 52079274
- ID:
- 651053
$85.07

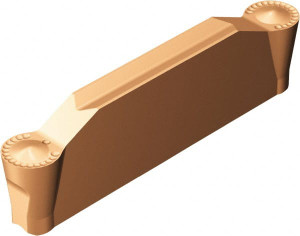

Sandvik Coromant N123L2-0800-RM 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 8mm Cutting Width, 27mm Max Depth, Series CoroCut 1-2
Manufacturer Part #: 5736390
S/N: 52079274
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123x2 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Cutting Width (mm) | 8.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Maximum Depth of Cut (mm) | 27.00 |
| Insert Material | Solid Carbide |
| Corner Radius (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 4.00 |
| Rake | Positive |
| Insert Size | L2 |
| Cutting Height (mm) | 6.05 |
| Maximum Depth Of Cut Range (Decimal Inch) | 1.0000+ |
| Cutting Height (Decimal Inch) | 0.2382 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.2010 |
| Iso Code | N123L2-0800-RM 1125 |
| Minimum Corner Radius (Decimal Inch) | 0.1575 |
| Manufacturers Catalog Number | N123L2-0800-RM 1125 |
| Insert Thickness (Decimal Inch) | 0.2382 |
| UNSPSC Code | 23242105 |
| Chip Breaker | RM |
| Insert Seat Size | L |
| Overall Width (Decimal Inch - 4 Decimals) | 0.3150 |
| Coating/Finish | TiAlN |
