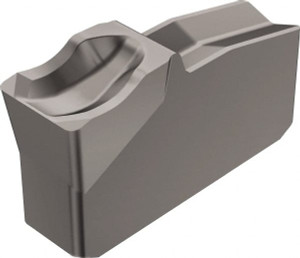

Sandvik Coromant N151.2-400-4E H13A Carbide Cutoff Insert Uncoated, 0° Neutral Lead Angle, Neutral Insert, 4mm Cutting Width, 0.3mm Corner Radius, Series T-Max Q-Cut 5737454 - 52079860
Brand: Sandvik Coromant- SKU:
- 52079860
- ID:
- 647699
$23.94
Sandvik Coromant N151.2-400-4E H13A Carbide Cutoff Insert Uncoated, 0° Neutral Lead Angle, Neutral Insert, 4mm Cutting Width, 0.3mm Corner Radius, Series T-Max Q-Cut
Manufacturer Part #: 5737454
S/N: 52079860
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N151.2 |
| Insert Size Code | 40 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | H13A |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Chipbreaker | 4E |
| Series | T-Max Q-Cut |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | N151.2-400-4E H13A |
| Insert Seat Size | 40 |
| Full Radius | No |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1575 |
| Overall Width (mm) | 4.00 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242105 |
