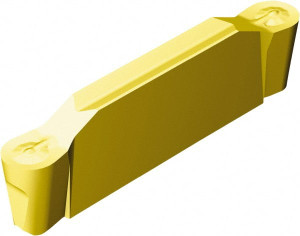

Sandvik Coromant N123H2-0400-RO S05F Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 4mm Cutting Width, 23.3mm Max Depth, Series CoroCut 1-2 5736225 - 52081031
Brand: Sandvik Coromant- SKU:
- 52081031
- ID:
- 651298
$72.68
Sandvik Coromant N123H2-0400-RO S05F Carbide Grooving Insert TiCN/Al2O3/TiN Finish, Neutral, 4mm Cutting Width, 23.3mm Max Depth, Series CoroCut 1-2
Manufacturer Part #: 5736225
S/N: 52081031
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123x2 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.9170 |
| Maximum Depth of Cut (mm) | 23.30 |
| Insert Material | Solid Carbide |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Rake | Positive |
| Insert Size | H2 |
| Cutting Height (mm) | 4.35 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | MT-CVD |
| Overall Length (Decimal Inch) | 0.9860 |
| Iso Code | N123H2-0400-RO S05F |
| Minimum Corner Radius (Decimal Inch) | 0.0787 |
| Manufacturers Catalog Number | N123H2-0400-RO S05F |
| Insert Thickness (Decimal Inch) | 0.1713 |
| UNSPSC Code | 23242105 |
| Chip Breaker | RO |
| Insert Seat Size | H |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1580 |
| Coating/Finish | TiCN/Al2O3/TiN |
