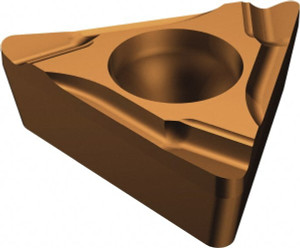

Sandvik Coromant TCGT1.81.51R-K 1125 Carbide Turning Insert TiAlN/AlCr2O3 Finish, 8.97mm Long, 5.71mm Inscribed Circle, 1/64" Corner Radius, 60° Triangle 5752112 - 52086204
Brand: Sandvik Coromant- SKU:
- 52086204
- ID:
- 674860
$33.88
Sandvik Coromant TCGT1.81.51R-K 1125 Carbide Turning Insert TiAlN/AlCr2O3 Finish, 8.97mm Long, 5.71mm Inscribed Circle, 1/64" Corner Radius, 60° Triangle
Manufacturer Part #: 5752112
S/N: 52086204
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | TCGT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60 |
| Manufacturer Grade | 1125 |
| Coating/Finish | TiAlN, AlCr2O3 |
| Wiper Edge | No |
| Insert Hand | Right Hand |
| Insert Thickness | 2.38 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | CoroTurn 107 |
| Inscribed Circle (Decimal Inch) | 0.2250 |
| Inscribed Circle (mm) | 5.71 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (mm) | 8.97 |
| Insert Length (Decimal Inch) | 0.3532 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Steel, Stainless Steel, Non-Ferrous Metal, Superalloy, Titanium |
| Secondary Workpiece Material Code | M, N, P, S |
| Iso Code | TCGT 09 02 04R-K 1125 |
| Chip Breaker | K |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1.81.51 |
