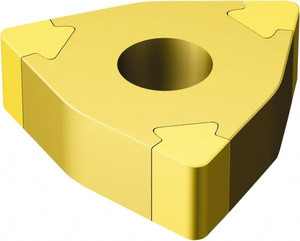

Sandvik Coromant WNGA332T0330AWH 7015 Carbide Turning Insert TiN Finish, 2.4mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80° Trigon 5756197 - 52086741
Brand: Sandvik Coromant- SKU:
- 52086741
- ID:
- 675382
$325.40
Sandvik Coromant WNGA332T0330AWH 7015 Carbide Turning Insert TiN Finish, 2.4mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80° Trigon
Manufacturer Part #: 5756197
S/N: 52086741
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNGA |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80 |
| Manufacturer Grade | 7015 |
| Coating/Finish | Titanium Nitride |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | G |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (mm) | 2.40 |
| Insert Length (Decimal Inch) | 0.0945 |
| Iso Code | WNGA060408T01030AWH 7015 |
| Chip Breaker | A |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
