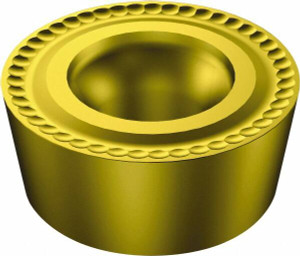

Sandvik Coromant RCMT64 M0 235 Carbide Turning Insert TiCN/TiN Finish, 1/4" Long, 3/4" Inscribed Circle, 1/4" Thick, Round 5740755 - 52087012
Brand: Sandvik Coromant- SKU:
- 52087012
- ID:
- 675385
$50.25
Sandvik Coromant RCMT64 M0 235 Carbide Turning Insert TiCN/TiN Finish, 1/4" Long, 3/4" Inscribed Circle, 1/4" Thick, Round
Manufacturer Part #: 5740755
S/N: 52087012
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | RCMT |
| Manufacturer Grade | 235 |
| Coating/Finish | TiCN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | CoroTurn 107 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (mm) | 19.05 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (mm) | 6.35 |
| Insert Length (Decimal Inch) | 0.2500 |
| Insert Length (Inch) | 1/4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | RCMT 19 06 00-M0 235 |
| Chip Breaker | M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 64 |
