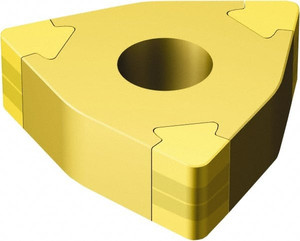

Sandvik Coromant WNGA432T0320B 7525 Carbide Turning Insert TiN Finish, 3mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon 5908130 - 52087723
Brand: Sandvik Coromant- SKU:
- 52087723
- ID:
- 675397
$345.85
Sandvik Coromant WNGA432T0320B 7525 Carbide Turning Insert TiN Finish, 3mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon
Manufacturer Part #: 5908130
S/N: 52087723
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNGA |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80 |
| Manufacturer Grade | 7525 |
| Coating/Finish | Titanium Nitride |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | G |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (mm) | 3.00 |
| Insert Length (Decimal Inch) | 0.1181 |
| Iso Code | WNGA080408T01020B 7525 |
| Chip Breaker | A |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
