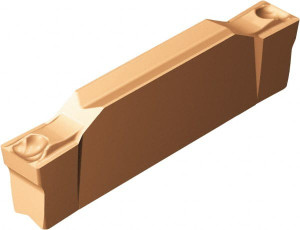

Sandvik Coromant N123G203180002-GF 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 1/8" Cutting Width, 19.2mm Max Depth, Series CoroCut 1-2 5735914 - 52317211
Brand: Sandvik Coromant- SKU:
- 52317211
- ID:
- 651394
$72.27
Sandvik Coromant N123G203180002-GF 1125 Carbide Grooving Insert TiAlN Finish, Neutral, 1/8" Cutting Width, 19.2mm Max Depth, Series CoroCut 1-2
Manufacturer Part #: 5735914
S/N: 52317211
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N123 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7559 |
| Maximum Depth of Cut (mm) | 19.20 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1125 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Rake | Neutral |
| Insert Size | G |
| Cutting Width (Inch) | 1/8 |
| Cutting Height (mm) | 4.30 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7894 |
| Iso Code | N123G2-0318-0002-GF 1125 |
| Maximum Corner Radius (Decimal Inch) | 0.0098 |
| Minimum Corner Radius (Decimal Inch) | 0.0059 |
| Manufacturers Catalog Number | N123G2-0318-0002-GF 1125 |
| Insert Thickness (Decimal Inch) | 0.1693 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GF |
| Insert Seat Size | G |
| Overall Width (mm) | 3.18 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1252 |
| Coating/Finish | TiAlN |
